Features

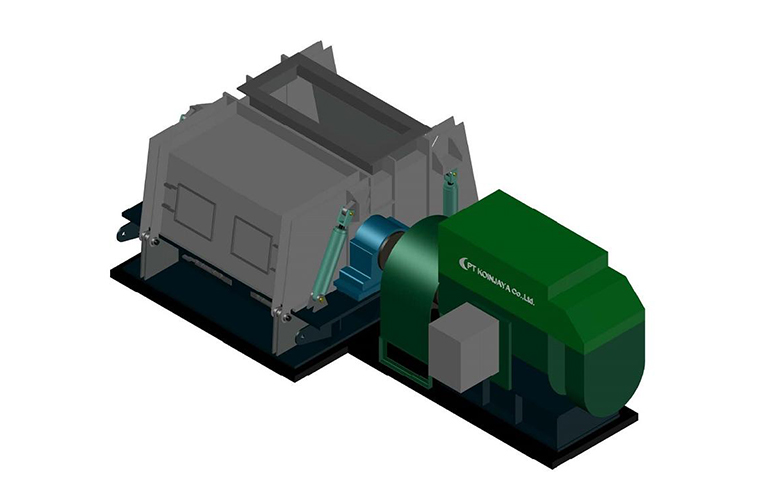

Ring hammer coal crusher is a series coal crushing machinery, which is designed to use in the coal handling g systems of the steam electric power plants. It can efficiently and economically crush raw coal to the grain sizes specified for the boilers. By comparison with other types of coal crushers, it has advantages of less noise, less dust, low power ratio, etc.

Applications

The coal crusher is suitable for crashing bituminous coal, smokeless coal, lignitous coal and freezing coal. The crushed material shall usually have compression strength of not more than 12MPa (120Kg/cm). Also the crusher can be used in the coal, construction material, chemical industry, light industry, textile and other departments for crushing brittle medium-hard material such as coke, slag lime stone, etc.

Specifications

Please use horizontal scrolling for table contents on mobile

Production rate 800 t/h Electric
motor
Type -
Crushing material Bituminous coal, smokeless
coal and lignitous coal
Power 420kW
Fragmentation of feeding material ≤150mm Speed 743r/min
Grain size of discharging material ≤30mm Voltage 6000V
Rotor
Compo-
nent
Diameter 1200mm Mass 5280kg
Length of crushing
section
1862mm Protection class IP55
Speed of rotor 717r/min Torque
limiting
fluid
coupling
Type -
Linear speed of rotor 44.82m/s Input speed d 750r/min
Rotary mass of rotor 6354kg Transmission
power
260~590kW
Ring
Hummer
Number of rows 4 rows Overload factor 2~2.5
Quantity Tooth ring
hammers 14 pieces
Circular ring
hammers 12 pieces
Efficiency 0.96
Mass of single
hammer
55.9kg 63.3kg Mass 650kg
Flywheel moment of inertia, rotor 2873kg.m2 Oil
temperature
alarm
0.2w 110±5℃
220V 50HZ
Disturbance force value PX=PZ 37.1kN
Foundation
load of
main
machine
Vertical direction 62183kgf Outline of main machine
(length×width×height)
3601×3434×1950
Horizontal direction 18655kgf Mass of main machine 24873kg
