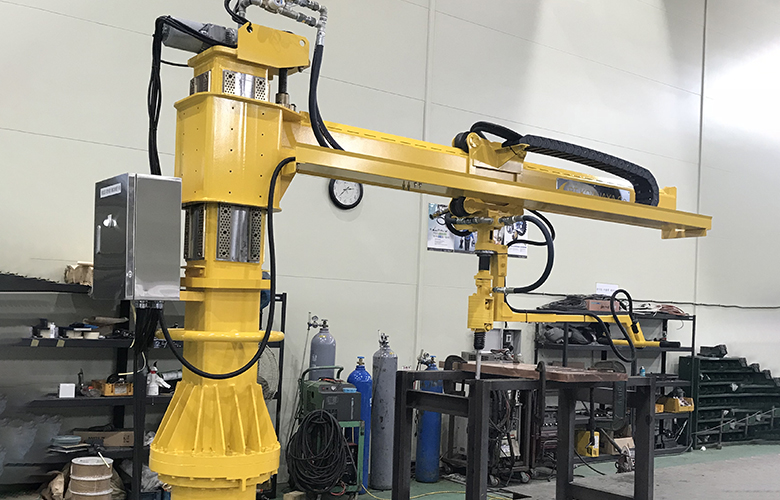

Mold Repair Machine Usage: It is equipment to repair cracks caused by frequent thermal expansion and contraction of mold in continuous production of copper plate in Copper smelter.

Characteristics

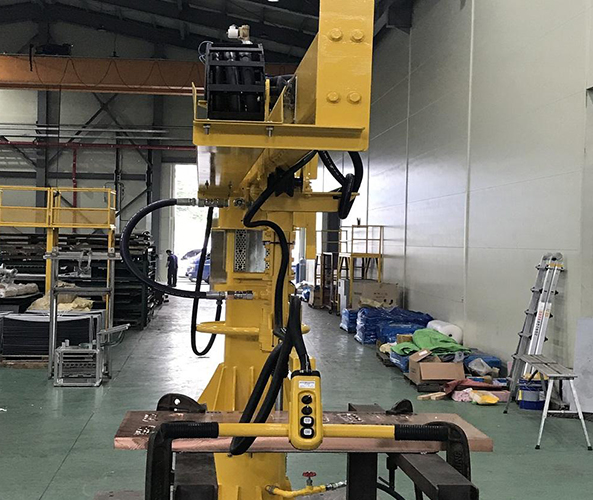

The mold can be repaired without detachment on the turntable, thus reducing replacement time and maintenance cost and maximizing production efficiency.

Differentiation from Competition

At present, the mold repair method of competitors is proceeding after detachment on the turntable, but research and development on the repairable method in the continuous production process is under way.

At the copper smelter, the mold rotates the turntable to produce copper plates, Production produces small cracks (due to frequent thermal expansion and contraction) In the case of cracks, molds are replaced with new molds and then copper plates are produced. Damage to the molds due to cracking of the molds is due to the cost of production of new molds, production schedule and delivery time delay, and defective products. To reduce the cost and improve the production efficiency, we developed a device to repair the crackswithout lowering the mold on the turn table.

Features

TO IMPROVE LIFE TIME OF ANODE MOULD BY REPAIRING CRACK.

A mold or mould is a hollowed-out block that is filled with a liquid or pliable material such as plastic, glass, metal, or ceramic raw material. The liquid hardens or sets inside the mold, adopting its shape. A mold is the counterpart to a cast. After periods of use, casting moulds are subjected to thermally induced stresses from molten metal and cooling water and probably side reaction with the anode copper and impurities. Hence the main signs of wear are intercrystalline cracks and corrosion, as well as mould distortion. With a crack, problems as follow happen.

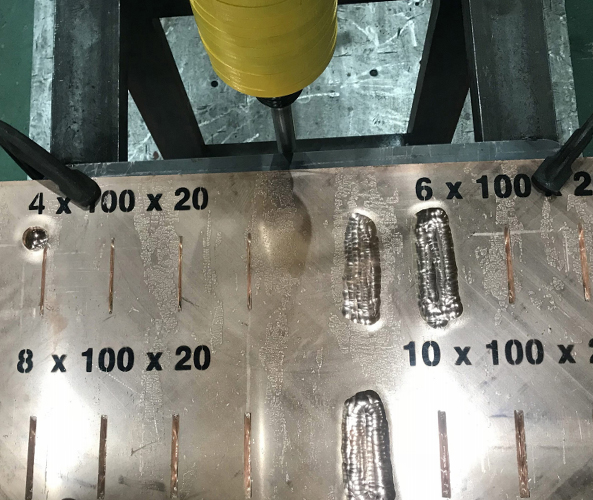

Our mould crack machine gives solution to problem “CRACK on the surface”

Applications

Specification / Customized to meet your needs

Working Radius 1.6 ~ 2.8 M
Slewing angle 360 Deg
Radius feeding speed 1 ~ 0.1 m/min
Actuator of Luffing & Feeding HYD. CYLINDER
No. OF BOOM 3
No.OF HYD. CYLINDER 4
METHOD OF LUFFING & FEEDING JOY STICK
Method of slewing HANDLE (MANUAL)
Actuator of rammer 1300/MIN
Bear strok of rammer 125mm
Location 440 V 60 hz, 3Ph

Repair hammer tool speicification.

Model Item CA 7
Mass of machine body kg 7.2
Total length of Machine body mm 470
Number of Blows min-1 1300
Air consumption quantity N.T.P. m3/min 1200 L/MIN
Shank mm Ø 26
Hose set screw - R 3/4
Inner diameter of air hose m 19
